A construction contractor reported hydraulic issues on their CASE CX170B excavator after extended operation under dusty and high-load conditions.
The machine plays a key role in daily excavation work, making reliable hydraulic performance essential.
Problem Identified – Oil Leakage and Unstable Cylinder Movement
The customer observed several issues during operation:
- Oil leakage from the hydraulic cylinder
- Reduced lifting force
- Unstable cylinder movement
- Gradual cylinder drift under load
These symptoms indicated internal seal failure, affecting both performance and efficiency.
Root Cause Analysis – Seal Wear and Contamination
After inspection, the issue was traced to worn and aged seals inside the hydraulic cylinder.
Continuous exposure to dust, pressure fluctuations, and long service intervals accelerated seal degradation.
KINTON SEALS Solution – High-Performance Seal Kit Supply
KINTON SEALS provided a complete hydraulic cylinder seal kit specifically matched for the CASE CX170B model.
Our solution included:
- High-quality NBR, PU, and PTFE seals
- Excellent wear and pressure resistance
- Precise dimensional compatibility
- Fast delivery for urgent replacement
This ensured a reliable and long-lasting sealing performance.
Installation Process – Efficient Replacement on Site
The customer’s maintenance team carried out the hydraulic cylinder seal replacement directly on site.
First, the hydraulic cylinder was removed from the excavator and carefully dismantled, focusing on the cylinder head section where the sealing components are installed. The worn and damaged seals were then taken out and replaced with the new KINTON SEALS kit.
After installing the new seals, the cylinder was reassembled and mounted back onto the machine. Additional sealing components around the cylinder head were also renewed to ensure complete sealing performance.
The entire replacement process was completed smoothly, with no fitting issues, confirming accurate compatibility of the seal kit.

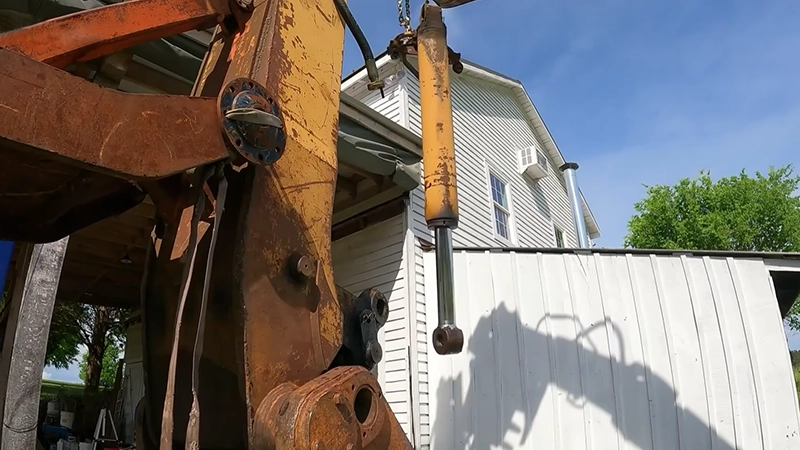

Hydraulic cylinder removal

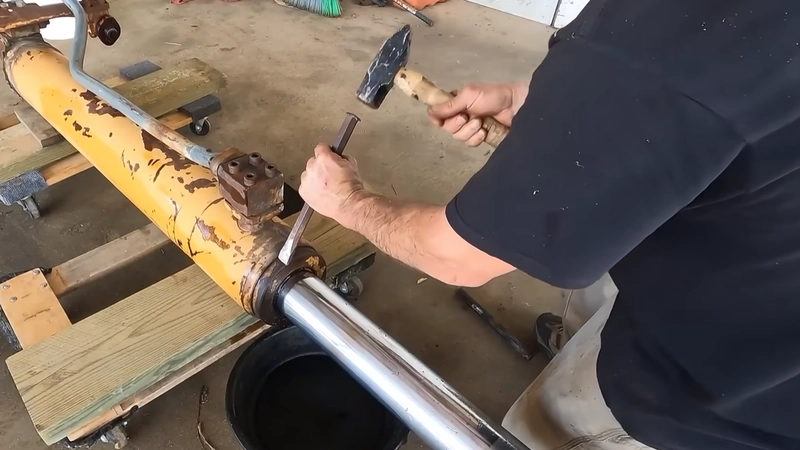

Cylinder dismantling
Worn seals inspection
New seal kit installation
Reassembly process

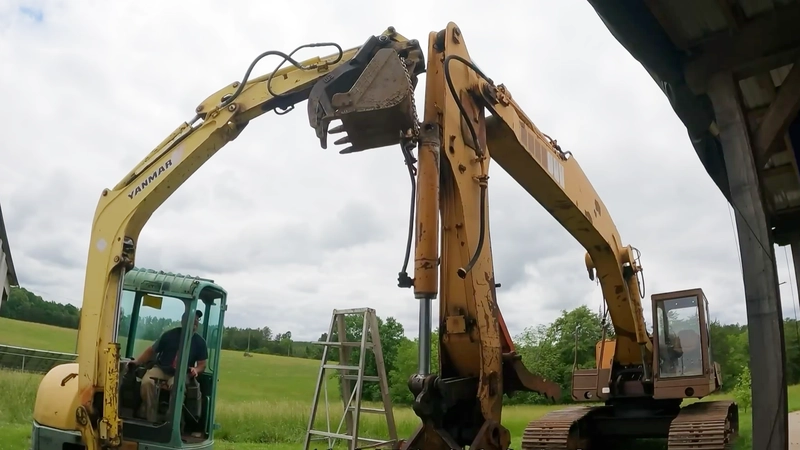

Machine back to work
Final Result – Restored Hydraulic Performance
After replacement, the excavator showed clear improvement:
- No more oil leakage
- Stable and smooth cylinder movement
- Restored lifting performance
- Improved operational efficiency
The customer confirmed satisfaction with the sealing quality and performance.
Need Hydraulic Seal Kits for Your Excavator?
If your machine shows oil leakage or unstable cylinder movement, it may be time to replace the seals.
