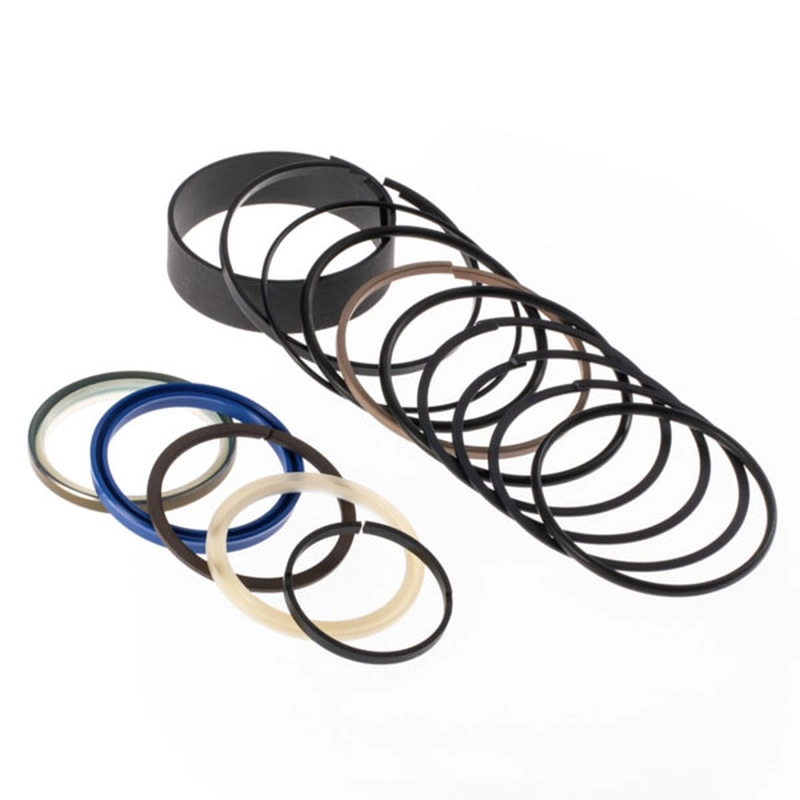

Boom Arm Bucket Hydraulic Cylinder Seal Kits for Caterpillar CAT Excavator
High-quality Caterpillar Excavator Hydraulic Seal Kit engineered for superior leak prevention, precise cylinder fit, and long-lasting durability, ensuring reliable hydraulic performance under heavy-duty construction conditions.
| Material | NBR/PTFE/ACM/VMQ/FKM/HNBR/EPDM/Silicone and etc |
|---|---|
| Working Temperature | -40–120℃(according to the material) |
| Pressure | Up to 690bar(10000psi) |
| Color | Black/Orange/Brown/White/Brown |
| MOQ | 5 Pieces |
Quick Quote Request
Kinton Seals is trusted by professionals worldwide for providing high-quality seal kits for excavators, dozers, loaders, and other heavy machinery, ensuring reliable performance and long-lasting durability.
The Caterpillar Excavator Hydraulic Seal Kit is designed to maintain optimal hydraulic system performance, preventing fluid leakage and ensuring smooth cylinder operation. By protecting pistons and rods from contamination and wear, this seal kit helps maintain consistent lifting and digging power across various working conditions.
Hydraulic seals are critical components that control fluid flow and pressure, directly affecting the efficiency and lifespan of your excavator's hydraulic system. This kit provides all essential seals for boom, arm, and bucket cylinders, allowing for a complete rebuild and enhanced reliability.
Materials & Manufacturing
Each seal in the kit is made from high-quality, abrasion-resistant materials selected for Caterpillar specifications. The combination of NBR (Nitrile Butadiene Rubber), polyurethane, and high-grade elastomers ensures excellent resistance to:
- High-pressure hydraulic fluids
- Extreme temperatures
- Wear and abrasion from continuous operation
Advanced molding and finishing processes guarantee precise dimensions and tight tolerances, providing a perfect fit for each cylinder component.
Manufacturing Process Summary
Every Caterpillar excavator seal kit is produced through a strict manufacturing process:
Precision Material Weighing
Each raw material block is carefully weighed with high-accuracy equipment before processing. This ensures that every seal ring starts with the exact material volume required for its specific size and application, preventing inconsistencies in density or performance.
Mold Preparation & Material Placement
After weighing, the prepared material is positioned onto the appropriate mold. Our workshop is equipped with a wide variety of molds to match different seal ring diameters and cross-sections. The correct mold selection guarantees precise shaping, while careful placement avoids defects such as uneven thickness.
High-Pressure Compression Molding
The molds are then set under specialized compression machines, where controlled pressure and temperature are applied. This process allows the material to be fully formed into a durable seal with consistent hardness and elasticity. Strict monitoring ensures every batch meets dimensional accuracy and structural integrity.
Rigorous Quality Inspection
Each batch of seals undergoes rigorous testing after molding. Technicians check for dimensional accuracy, surface smoothness, hardness, and sealing resilience. Any defective products are filtered out, ensuring that only seals with stable performance and long service life proceed to packaging.
OEM Compatibility & Fitment
This hydraulic seal kit is compatible with a wide range of Caterpillar excavators, including but not limited to:
- CAT 320, 320D, 325, 330, 336 series
- Boom, arm, and bucket cylinder rebuilds
- OEM replacement numbers: Contact us with your existing part numbers for confirmation
The kit is designed for direct replacement and offers the same reliability as original Caterpillar components, ensuring minimal downtime.
| Part Numbers | ||||||||
|---|---|---|---|---|---|---|---|---|

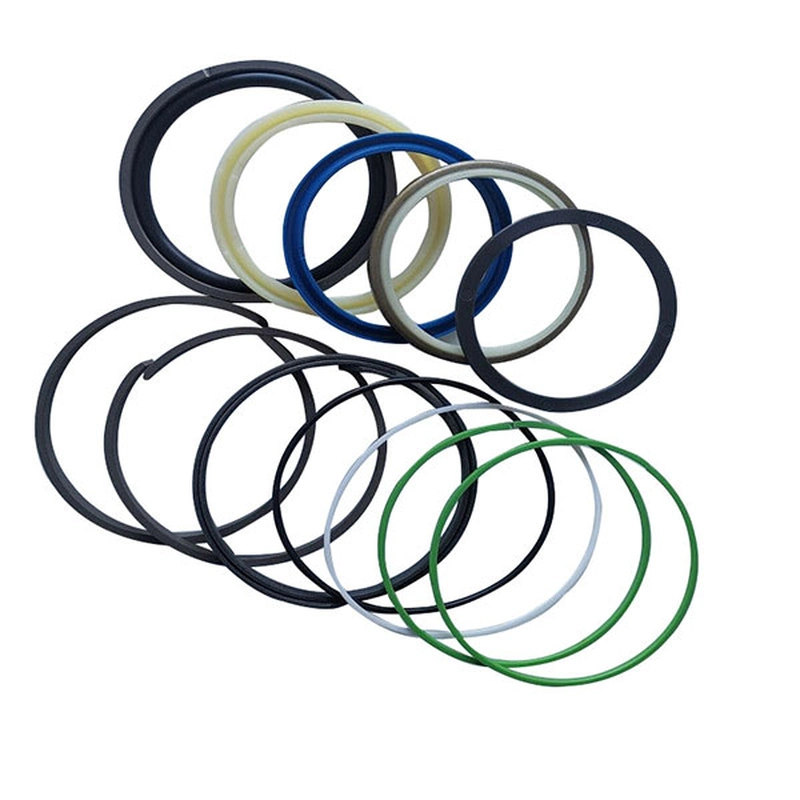

| 3E3292 | 3E3303 | 4I3665 | 4I3668 | 4I7664 | 4I8914 | 7Y5145 | 8U5852 | 9X6261 |
| 9X6263 | 2332626 | 2605320 | 5456415 | 0875394 | 1052601 | 1057359 | 1057397 | 1148290 |
| 1163612 | 1184131 | 1184175 | 1186023 | 1195446 | 1195457 | 1261880 | 1261937 | 1261947 |
| 1270630 | 1336823 | 1373764 | 1540744 | 1589092 | 1680758 | 1697837 | 1697838 | 1709941 |
| 1709999 | 1764914 | 1799634 | 1799772 | 1855574 | 1884457 | 1915619 | 2043692 | 2095874 |
| 2159985 | 2159986 | 2316845 | 2330764 | 2344587 | 2366368 | 2366389 | 2460658 | 2470257 |
| 2478790 | 2478868 | 2478878 | 2478888 | 2478998 | 2479001 | 2481165 | 2501047 | 2502475 |
| 2521191 | 2590633 | 2590775 | 2836179 | 2897716 | 2897733 | 3500970 | 3500973 | 3500974 |
| 3904227 | 3937887 | 3937949 | 3979091 | 3979294 | 3980963 | 3982332 | 4560197 | 4560203 |
| 4560204 | 4560205 | 4560207 | 4610642 | 4610643 | 4642931 | 5185133 | 5185136 | 1M1574 |
| CAT 303.5 CR Arm cylinder seal kit | CAT 320DL Bucket cylinder seal kit | CAT 320DL Boom cylinder seal kit | ||||||
| 2S5867 | 4J3342 | 5J5402 | 5J8150 | 5J8275 | 5J8300 | 7X2670 | 7X2672 | 7X2749 |
| 7X2751 | 7X2762 | 7X2764 | 7X2767 | 7X2784 | 7X2789 | 7X2791 | 7X2825 | 8C9122 |
| 8C9124 | 1672207 | 2253281 | 2253283 | 2268202 | 2299382 | 2892937 | 2892946 | 2892948 |
| 7Y4222 | 7Y4295 | 7Y4970 | 7Y5147 | 81E1-3204 | 81E1-3301 | 91ER-20051 | 2274-6014 | 2478974 |
| 401107-00242A | A7V0250 | A8V55 | 2274-1014 | KVC925 | PVD2B-36L | |||
If you can't find the serial number you need, please contact us.
