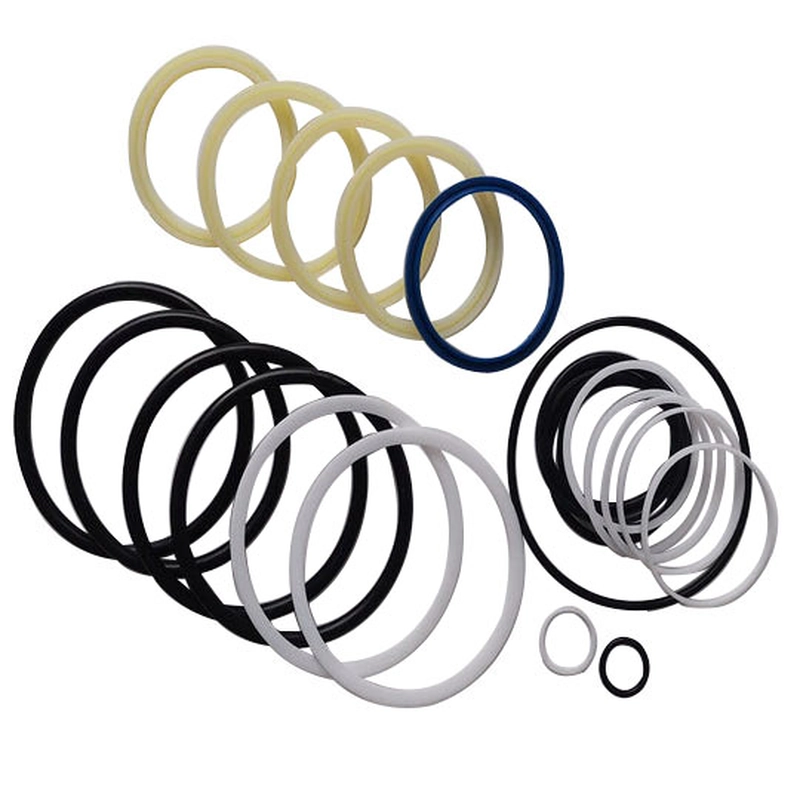

Custom Seal Suppliers for Arrowhead Hydraulic Hammers
Durable Arrowhead Hydraulic Hammer Seal Kits built for maximum sealing reliability. Designed to handle extreme pressure and impact, these kits prevent leaks, improve efficiency, and extend the working life of your breaker in demanding environments.
| Material | NBR/ PTFE/ ACM/ VMQ/ FKM/ HNBR/ EPDM/ Silicone and etc |
|---|---|
| MOQ | 5 Pieces |
| Pressure | Up to 690bar(10000psi) |
| Working Temperature | -40–120℃(according to the material) |
| Color | Black/Orange/Brown/White/Brown |
Quick Quote Request
Kinton Seals is trusted by professionals worldwide for providing high-quality seal kits for excavators, dozers, loaders, and other heavy machinery, ensuring reliable performance and long-lasting durability.
The Arrowhead Hydraulic Hammer Seal Kit is an indispensable solution for ensuring long-term reliability and performance of your breaker. Hydraulic hammers operate under severe working conditions—high pressure, repetitive impacts, dust, and debris. Without proper sealing, hydraulic oil leaks and reduced impact power can quickly cause costly downtime.
Our seal kits are specifically engineered to provide leak-proof protection and maintain consistent breaker performance. With precision fitment for Arrowhead models, they allow contractors and operators to maximize productivity while minimizing unplanned repairs.
Manufacturing Process
Each seal kit undergoes a strict production and inspection process:
Precision Material Weighing
Each raw material block is carefully weighed with high-accuracy equipment before processing. This ensures that every seal ring starts with the exact material volume required for its specific size and application, preventing inconsistencies in density or performance.
Mold Preparation & Material Placement
After weighing, the prepared material is positioned onto the appropriate mold. Our workshop is equipped with a wide variety of molds to match different seal ring diameters and cross-sections. The correct mold selection guarantees precise shaping, while careful placement avoids defects such as uneven thickness.
High-Pressure Compression Molding
The molds are then set under specialized compression machines, where controlled pressure and temperature are applied. This process allows the material to be fully formed into a durable seal with consistent hardness and elasticity. Strict monitoring ensures every batch meets dimensional accuracy and structural integrity.
Rigorous Quality Inspection
Each batch of seals undergoes rigorous testing after molding. Technicians check for dimensional accuracy, surface smoothness, hardness, and sealing resilience. Any defective products are filtered out, ensuring that only seals with stable performance and long service life proceed to packaging.
Key Benefits of Arrowhead Seal Kits
- Leak Protection: Advanced sealing structure prevents oil leakage and contamination.
- Durability Under Pressure: Designed to withstand constant impact cycles and high hydraulic pressure.
- Enhanced Breaker Efficiency: Restores original power output, ensuring optimal breaking force.
- Extended Service Life: Protects critical breaker components from premature wear and tear.
- OEM Compatibility: Engineered to match Arrowhead hammer specifications for easy installation.
OEM Fitment & Compatibility
The seal kits are compatible with a wide range of Arrowhead hydraulic hammer models, including:
Arrowhead R45S, R65S, R75S, S130, S180, S230, and other popular series
| Part Numbers | |||||||
|---|---|---|---|---|---|---|---|
| S10 | S20 | S30 | S40 | S50 | S60 | S100 | S130 |
| S230 | HB2T | HB4T | HB6T | HB10T | HB16T | HB22T | |
OEM part reference support available upon request
Quality Control & Manufacturing Standards
To guarantee performance, our Arrowhead breaker seal kits are produced under strict standards:
- Material Certification – Only tested and approved compounds are used.
- CNC Machining Precision – Ensures exact dimensional accuracy for OEM fit.
- Pressure & Wear Testing – Simulated to replicate real-world hammer usage.
- Final Inspection – Every kit is checked before packaging and shipping.
This ensures each kit meets or exceeds OEM requirements.

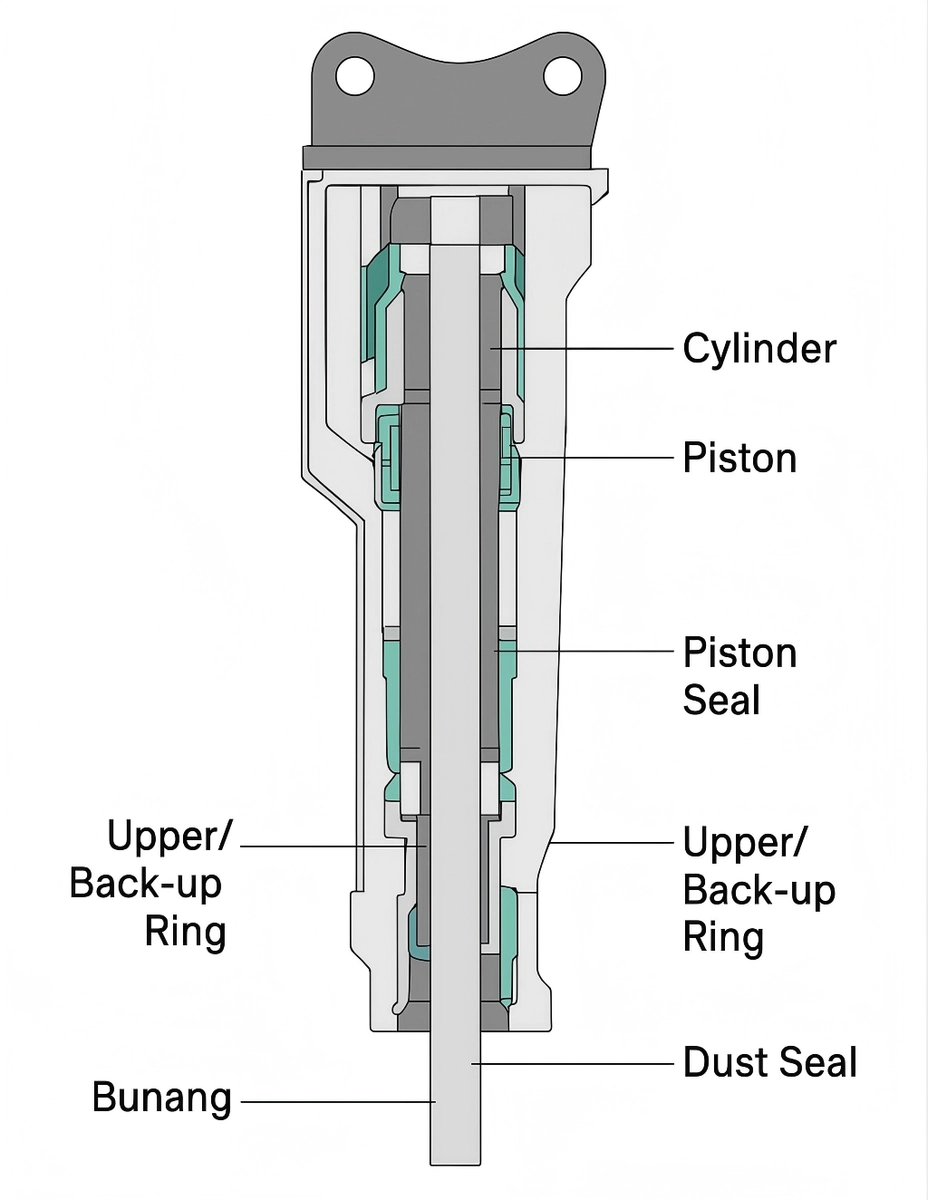

Seal Placement
In hydraulic breakers, critical seals are strategically positioned around the piston, cylinder, and valve system to ensure:
- Prevents leakage of hydraulic oil under high pressure.
- Protecting internal components from dust, water, and abrasive particles.
- Provides smooth piston and connecting rod movement and consistent impact force.
- Reduces wear on metal components by maintaining proper lubrication.
Clear structural diagrams enable users to better understand how the seal kit integrates with the breaker's internal systems and why correct replacement is critical to performance.
Material Overview for Seal Kits
Every Arrowhead seal kit is built using carefully selected materials that deliver superior performance:
Nitrile Rubber Buna(NBR, BUNA-N)
Temperature Range:-30 to 125 ℃
Hardness:60-90 Shore A
Color: Black
Use: Oil & Water Resistance Situation Advantage: Excellent oil resistance, performance and stability, widely used, cheaper
Fluororubber(FKM,FPM)
Temperature Range:-20 to 250℃
Hardness:70-90 Shore A
Color: Black/Brown/Green
Use: Oil & Chemical Resistance Situation
Advantage: Wear resistance, acid and alkali resistance, high temperature resistance situation
Silicone (VMQ )
Temperature Range: -60 to 225 ℃
Hardness: 50-70 Shore A
Color: Red/Black/Blue/White/Transparent, etc
Use: Heat& Food Situation(FDA, RoHS Approved)
Advantage: Good heat resistance, cold resistance, lubrication oil resistance, water resistance safety & reliable to human body
Ethylene Propylene Rubber(EPDM, EPM)
Temperature Range:-50 to 150 ℃
Hardness: 60-90 Shore A
Color: Black
Use: Ozone, water vapor situation
Advantage: Excellent oxidation resistance ozone resistance and erosion resistance
Perfluoroelastomer(FFKM, FFPM)
Temperature Range: -42 to 327 ℃
Hardness:60-95 Shore A
Color: Black / White
Advantage: Long-term, proven performance, can mean less frequent seal changes, repairs and inspections, increasing process and equipment uptime in productivity and yield.
Neoprene Rubber(CR )
Temperature Range:-30 to 125 ℃
Hardness:60-90 Shore A
Color: Black
Use: Oil & Water Resistance Situation Advantage: Excellent oil resistance, performance and stability, widely used, cheaper
These materials work together to ensure reliable sealing performance across a wide range of applications.
Application Fields
Arrowhead hydraulic hammers with our seal kits are widely used in:
- Demolition & Construction – breaking concrete, foundations, and reinforced structures.
- Mining & Quarrying – heavy-duty rock breaking with minimal downtime.
- Civil Engineering Projects – ensuring uninterrupted operation in road and bridge works.
Maintenance Recommendations
- Regularly check seals for early signs of wear or leakage.
- Replace seal kits during scheduled maintenance intervals.
- Keep hydraulic oil clean and within manufacturer specifications.
- Store unused seal kits in cool, dry conditions to preserve elasticity.
Why Choose Our Arrowhead Hydraulic Hammer Seal Kit?
- OEM precision fit for Arrowhead breakers
- Extended life span under extreme working conditions
- Premium material selection for reliable performance
- Strict quality control for guaranteed sealing efficiency
- Global supply and professional support
At Kinton Seals, we understand that reliable delivery is just as important as product quality. Our goal is to ensure that every order of Seal Kits for excavators, bulldozers, wheel loaders, and other heavy machinery reaches our customers safely, on time, and in perfect condition.
Packaging & Protection
- Standard Export Packaging – Each seal kit is carefully packed in moisture-proof and dust-proof bags, ensuring seals remain clean and undamaged during storage and transportation.
- Layered Protection – Kits are placed in sturdy cartons, and for bulk shipments, cartons are further reinforced with pallets and stretch film to minimize impact during handling and transit.
- Customization Options – We provide OEM/ODM packaging services, including branded boxes, barcodes, and special instructions, helping partners strengthen their brand presence in local markets.
- Extra Protection – For bulk shipments, cartons and pallets are reinforced to reduce the risk of damage in transit.
Order Processing & Lead Time
- Standard Seal Kits – For large quantity orders, lead time is usually 7–10 working days, as each kit requires precise matching of every seal, followed by labeling and packaging.
- Custom Seal Kits – For tailored requirements or non-standard models, production and assembly typically take 15–30 days, especially if new tooling or mold development is required.
- Sample Orders – Small batch or sample kits can often be prepared faster, subject to stock availability.
Delivery Options
- Air Freight for urgent orders
- Sea Freight for bulk shipments
- Courier Express (DHL, FedEx, UPS) for small packages and samples
