Seal Kit Cross Reference for Atlas Copco Hydraulic Breaker
Durable Atlas Copco Hydraulic Breaker Seal Kits engineered to handle extreme pressure, heavy vibration, and abrasive jobsite conditions. Designed for a precise OEM fit, these kits help prevent oil leakage, reduce unexpected downtime, and extend the working life of your breaker.
| Material | NBR/ PTFE/ ACM/ VMQ/ FKM/ HNBR/ EPDM/ Silicone and etc |
|---|---|
| MOQ | 5 Pieces |
| Pressure | Up to 690bar(10000psi) |
| Working Temperature | -40–120℃(according to the material) |
| Color | Black/Orange/Brown/White/Brown |
Quick Quote Request
Kinton Seals is trusted by professionals worldwide for providing high-quality seal kits for excavators, dozers, loaders, and other heavy machinery, ensuring reliable performance and long-lasting durability.
Hydraulic breakers are among the most powerful attachments in mining, construction, and demolition, and Atlas Copco hammers are trusted worldwide for their impact strength and reliability. To maintain peak performance, a high-quality Hydraulic Breaker Seal Kit is essential. These seals play a vital role in keeping hydraulic fluid contained, protecting against dust and debris, and ensuring consistent power output during heavy-duty operations
Quality Manufacturing Process
Every seal kit is produced under strict quality control procedures:
Precision Material Weighing
Each raw material block is carefully weighed with high-accuracy equipment before processing. This ensures that every seal ring starts with the exact material volume required for its specific size and application, preventing inconsistencies in density or performance.
Mold Preparation & Material Placement
After weighing, the prepared material is positioned onto the appropriate mold. Our workshop is equipped with a wide variety of molds to match different seal ring diameters and cross-sections. The correct mold selection guarantees precise shaping, while careful placement avoids defects such as uneven thickness.
High-Pressure Compression Molding
The molds are then set under specialized compression machines, where controlled pressure and temperature are applied. This process allows the material to be fully formed into a durable seal with consistent hardness and elasticity. Strict monitoring ensures every batch meets dimensional accuracy and structural integrity.
Rigorous Quality Inspection
Each batch of seals undergoes rigorous testing after molding. Technicians check for dimensional accuracy, surface smoothness, hardness, and sealing resilience. Any defective products are filtered out, ensuring that only seals with stable performance and long service life proceed to packaging.
This process guarantees reliable sealing even under the harshest operating conditions.
Why Choose Our Atlas Copco Seal Kits?
Our Atlas Copco seal kits are engineered with precision and durability in mind:
- Leak-Free Operation – Prevents costly hydraulic oil loss.
- Impact Resistance – Withstands constant shock and vibration cycles.
- Restored Power Efficiency – Helps your breaker deliver full striking energy.
- Extended Component Protection – Reduces wear on pistons, bushings, and cylinders.
- OEM-Level Precision – Ensures hassle-free installation and compatibility.
Compatible Atlas Copco Models
We supply seal kits suitable for a wide range of Atlas Copco breaker series:
- SB Series: SB 102, SB 152, SB 202 and more
- MB Series: MB 1200, MB 1500, MB 1700
- HB Series: HB 2000, HB 3100, HB 4700, HB 7000
| Part Numbers | |||||||
|---|---|---|---|---|---|---|---|

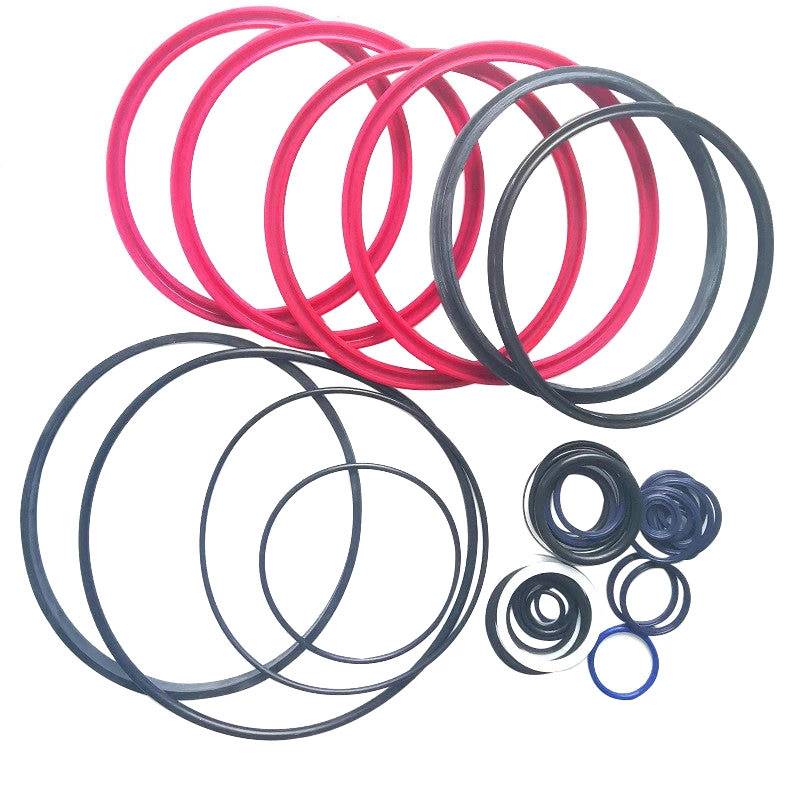

| EC120T | HB2000 | HB2200 | HB2500 | HB3000 | HB3100 | HB3600 | HB4100 |

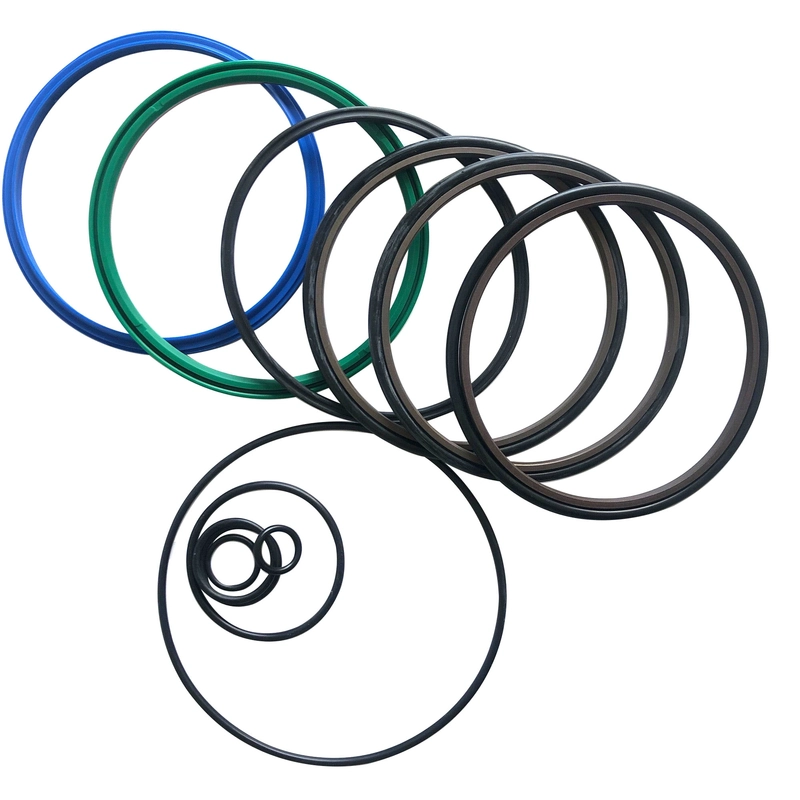

| HB4200 | HB4700 | HB7000 | IM405 | MB100 | MB750DP | MB800 | MB1200 |

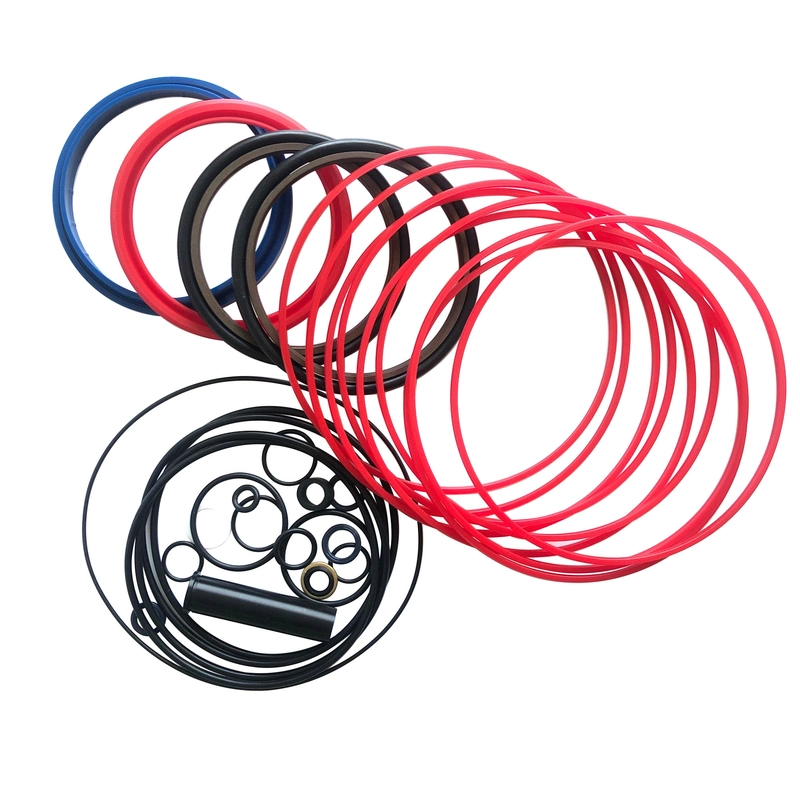

| MB1500 | MB1700 | SB102 | SB202 | SB302 | SB450 | SB452 | SB552 |
| SBC410 | SBC610 | SBC850 | |||||
(Custom kits available upon request for other models.)
Quality Manufacturing Process
Every seal kit is produced under strict quality control procedures:
- Certified Materials – Tested for hardness, elasticity, and temperature resistance.
- CNC Machining Precision – Accurate dimensions for proper OEM fit.
- Rigorous Performance Testing – Pressure, wear, and leak simulations.
- Final Quality Inspection – Ensures every kit meets Atlas Copco specifications.
This process guarantees reliable sealing even under the harshest operating conditions.
Seal Placement
In hydraulic breakers, critical seals are strategically positioned around the piston, cylinder, and valve system to ensure:
- Prevents leakage of hydraulic oil under high pressure.
- Protecting internal components from dust, water, and abrasive particles.
- Provides smooth piston and connecting rod movement and consistent impact force.
- Reduces wear on metal components by maintaining proper lubrication.
Clear structural diagrams enable users to better understand how the seal kit integrates with the breaker's internal systems and why correct replacement is critical to performance.
Material Overview for Seal Kits
The performance of a seal kit depends heavily on the materials used. We select compounds based on durability, elasticity, and resistance to hydraulic oil and heat:
Nitrile Rubber Buna(NBR, BUNA-N)
Temperature Range:-30 to 125 ℃
Hardness:60-90 Shore A
Color: Black
Use: Oil & Water Resistance Situation Advantage: Excellent oil resistance, performance and stability, widely used, cheaper
Fluororubber(FKM,FPM)
Temperature Range:-20 to 250℃
Hardness:70-90 Shore A
Color: Black/Brown/Green
Use: Oil & Chemical Resistance Situation
Advantage: Wear resistance, acid and alkali resistance, high temperature resistance situation
Silicone (VMQ )
Temperature Range: -60 to 225 ℃
Hardness: 50-70 Shore A
Color: Red/Black/Blue/White/Transparent, etc
Use: Heat& Food Situation(FDA, RoHS Approved)
Advantage: Good heat resistance, cold resistance, lubrication oil resistance, water resistance safety & reliable to human body
Ethylene Propylene Rubber(EPDM, EPM)
Temperature Range:-50 to 150 ℃
Hardness: 60-90 Shore A
Color: Black
Use: Ozone, water vapor situation
Advantage: Excellent oxidation resistance ozone resistance and erosion resistance
Perfluoroelastomer(FFKM, FFPM)
Temperature Range: -42 to 327 ℃
Hardness:60-95 Shore A
Color: Black / White
Advantage: Long-term, proven performance, can mean less frequent seal changes, repairs and inspections, increasing process and equipment uptime in productivity and yield.
Neoprene Rubber(CR )
Temperature Range:-30 to 125 ℃
Hardness:60-90 Shore A
Color: Black
Use: Oil & Water Resistance Situation Advantage: Excellent oil resistance, performance and stability, widely used, cheaper
Together, these materials provide balanced sealing performance to meet the demands of Atlas Copco breakers working in mining, quarrying, or demolition projects.
Applications
Atlas Copco breakers with our seal kits are trusted across multiple industries:
- Mining & Quarrying – breaking hard rock with maximum reliability.
- Demolition & Recycling – crushing reinforced concrete and structures.
- Construction Projects – foundation, road, and tunnel work.
- Specialized Jobs – forestry, trenching, and utility projects.
Maintenance Tips
- Inspect seals regularly for wear or leakage.
- Replace seal kits during scheduled hammer servicing.
- Use only clean hydraulic oil within manufacturer specifications.
- Store unused kits properly to maintain material integrity.
Why Our Atlas Copco Breaker Seal Kits Stand Out
- Long-lasting durability under extreme conditions
- OEM precision fit for Atlas Copco breakers
- Reduced downtime and maintenance costs
- Wide model coverage for multiple breaker series
- Reliable global supply and technical support
At Kinton Seals, we understand that reliable delivery is just as important as product quality. Our goal is to ensure that every order of Seal Kits for excavators, bulldozers, wheel loaders, and other heavy machinery reaches our customers safely, on time, and in perfect condition.
Packaging & Protection
- Standard Export Packaging – Each seal kit is carefully packed in moisture-proof and dust-proof bags, ensuring seals remain clean and undamaged during storage and transportation.
- Layered Protection – Kits are placed in sturdy cartons, and for bulk shipments, cartons are further reinforced with pallets and stretch film to minimize impact during handling and transit.
- Customization Options – We provide OEM/ODM packaging services, including branded boxes, barcodes, and special instructions, helping partners strengthen their brand presence in local markets.
- Extra Protection – For bulk shipments, cartons and pallets are reinforced to reduce the risk of damage in transit.
Order Processing & Lead Time
- Standard Seal Kits – For large quantity orders, lead time is usually 7–10 working days, as each kit requires precise matching of every seal, followed by labeling and packaging.
- Custom Seal Kits – For tailored requirements or non-standard models, production and assembly typically take 15–30 days, especially if new tooling or mold development is required.
- Sample Orders – Small batch or sample kits can often be prepared faster, subject to stock availability.
Delivery Options
- Air Freight for urgent orders
- Sea Freight for bulk shipments
- Courier Express (DHL, FedEx, UPS) for small packages and samples
