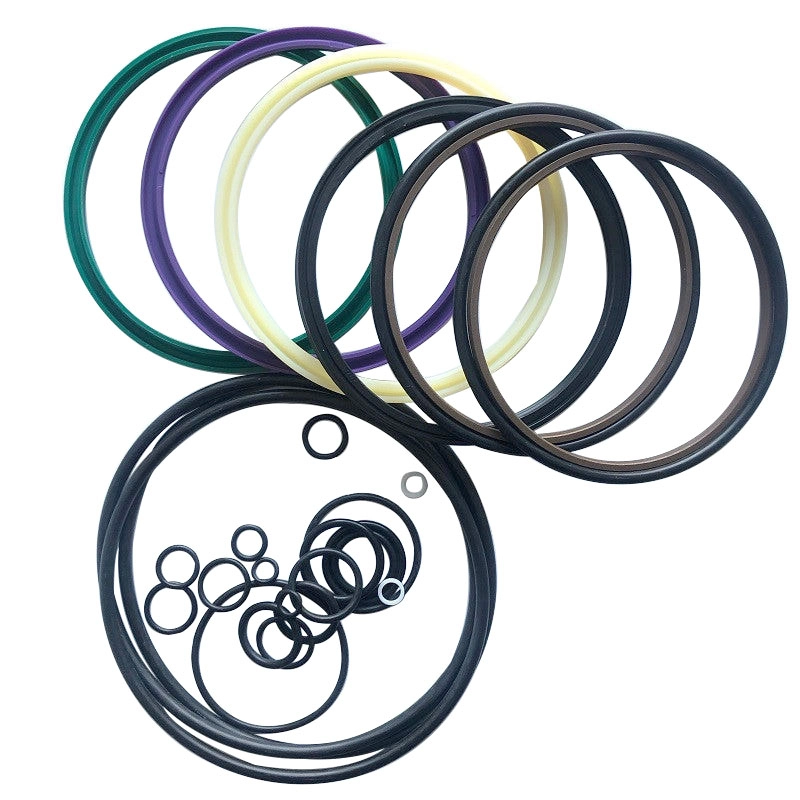

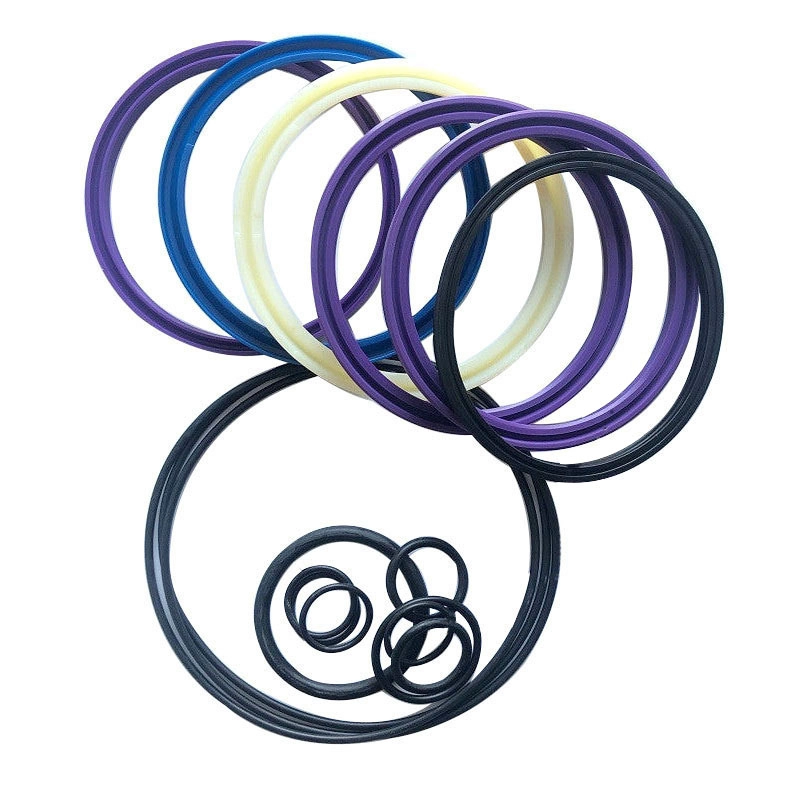

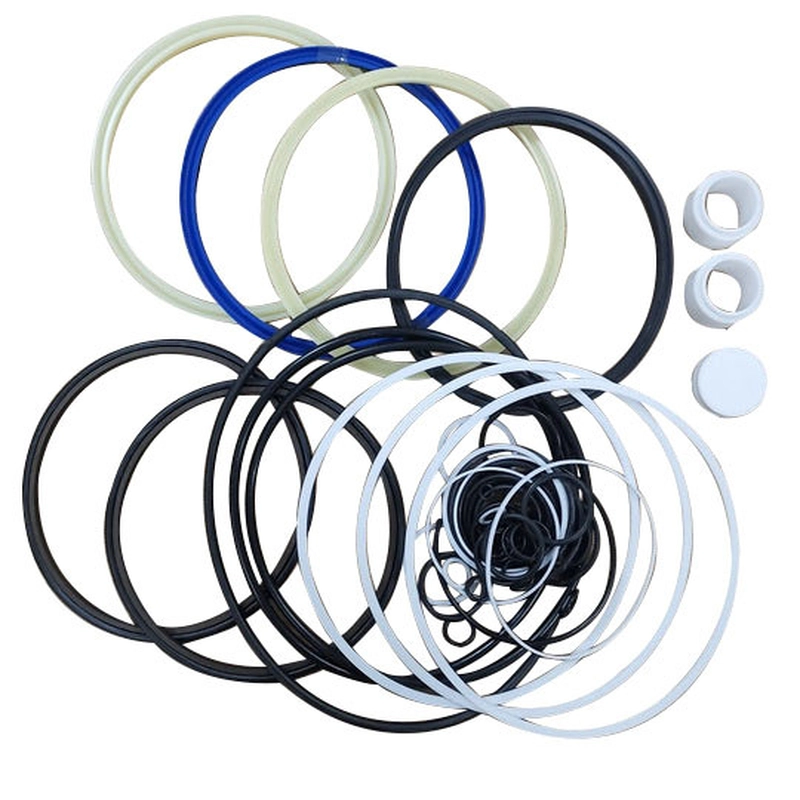

Seal Kits Replacement Parts fit EDT Hydraulic Breaker
Premium EDT Hydraulic Breaker Seal Kits engineered for durability, precise fit, and superior sealing performance. Designed to withstand high pressure, vibration, and extreme working conditions, these kits extend the service life of EDT breakers and minimize costly downtime.
| Material | NBR/ PTFE/ ACM/ VMQ/ FKM/ HNBR/ EPDM/ Silicone and etc |
|---|---|
| MOQ | 5 Pieces |
| Pressure | Up to 690bar(10000psi) |
| Working Temperature | -40–120℃(according to the material) |
| Color | Black/Orange/Brown/White/Brown |
Quick Quote Request
Kinton Seals is trusted by professionals worldwide for providing high-quality seal kits for excavators, dozers, loaders, and other heavy machinery, ensuring reliable performance and long-lasting durability.
Hydraulic breakers such as EDT hammers are built for heavy-duty applications like quarrying, mining, construction, and demolition. However, their hydraulic systems constantly endure intense pressure, heat, and contamination from dust and debris. Without reliable sealing, oil leakage and reduced impact performance can quickly lead to breakdowns. Our EDT breaker seal kits are specifically developed to restore your hydraulic hammer’s original power and efficiency. Manufactured according to OEM specifications, they ensure a perfect fit, leak-proof sealing, and long-lasting durability. Whether you are replacing worn seals or conducting routine maintenance, these kits are the ideal solution to protect your equipment investment.
Quality Manufacturing Process
Each seal kit undergoes a rigorous production process to ensure reliability and performance:
Precision Material Weighing
Each raw material block is carefully weighed with high-accuracy equipment before processing. This ensures that every seal ring starts with the exact material volume required for its specific size and application, preventing inconsistencies in density or performance.
Mold Preparation & Material Placement
After weighing, the prepared material is positioned onto the appropriate mold. Our workshop is equipped with a wide variety of molds to match different seal ring diameters and cross-sections. The correct mold selection guarantees precise shaping, while careful placement avoids defects such as uneven thickness.
High-Pressure Compression Molding
The molds are then set under specialized compression machines, where controlled pressure and temperature are applied. This process allows the material to be fully formed into a durable seal with consistent hardness and elasticity. Strict monitoring ensures every batch meets dimensional accuracy and structural integrity.
Rigorous Quality Inspection
Each batch of seals undergoes rigorous testing after molding. Technicians check for dimensional accuracy, surface smoothness, hardness, and sealing resilience. Any defective products are filtered out, ensuring that only seals with stable performance and long service life proceed to packaging.
With advanced sealing technology and OEM-level precision, our EDT breaker seal kits deliver long-lasting protection and dependable performance in the toughest environments.
Key Features & Benefits
- OEM Standard Fit – Designed to match EDT breaker models with precision.
- Superior Sealing Performance – Prevents oil leakage and contamination.
- Durable Materials – High-quality rubber and polyurethane compounds resistant to pressure, wear, and heat.
- Extended Service Life – Reduces downtime and maintenance frequency.
- Wide Application – Reliable in mining, quarrying, construction, and demolition projects.
Compatible Breaker Models
Our EDT Hydraulic Breaker Seal Kits are compatible with a wide range of models, including (but not limited to):
- EDT 200, EDT 300, EDT 400
- EDT 450, EDT 500, EDT 800
- EDT 1200, EDT 1500, EDT 2000
- EDT 2200, EDT 3000
| Part Numbers | |||||||
|---|---|---|---|---|---|---|---|
| EDT400 | EDT430 | EDT800 | EDT1600 | EDT2000 | EDT3000 | EDT3200 | EDT6000 |
| EDT8000 | |||||||
Note: Compatibility may vary by production year—please confirm with breaker model and part numbers before ordering.
Applications
- Construction Projects – Roadworks, foundations, and trenching.
- Mining & Quarrying – Hard rock breaking and aggregate extraction.
- Demolition – Concrete and reinforced structure removal.
- Heavy Earthmoving – High-power excavation and land development.
Seal Placement
Seals are strategically installed in piston, cylinder, valve, and tie rod areas of breakers. They work together to:
- Prevents leakage of hydraulic oil under high pressure.
- Protecting internal components from dust, water, and abrasive particles.
- Provides smooth piston and connecting rod movement and consistent impact force.
- Reduces wear on metal components by maintaining proper lubrication.
Seals are strategically placed in the piston, cylinder, tie rods, and valve areas, ensuring full hydraulic protection and preventing premature wear of critical components.
Material Overview for Seal Kits
Our seal kits are manufactured using carefully selected materials, each optimized for breaker working conditions:
Nitrile Rubber Buna(NBR, BUNA-N)
Temperature Range:-30 to 125 ℃
Hardness:60-90 Shore A
Color: Black
Use: Oil & Water Resistance Situation Advantage: Excellent oil resistance, performance and stability, widely used, cheaper
Fluororubber(FKM,FPM)
Temperature Range:-20 to 250℃
Hardness:70-90 Shore A
Color: Black/Brown/Green
Use: Oil & Chemical Resistance Situation
Advantage: Wear resistance, acid and alkali resistance, high temperature resistance situation
Silicone (VMQ )
Temperature Range: -60 to 225 ℃
Hardness: 50-70 Shore A
Color: Red/Black/Blue/White/Transparent, etc
Use: Heat& Food Situation(FDA, RoHS Approved)
Advantage: Good heat resistance, cold resistance, lubrication oil resistance, water resistance safety & reliable to human body
Ethylene Propylene Rubber(EPDM, EPM)
Temperature Range:-50 to 150 ℃
Hardness: 60-90 Shore A
Color: Black
Use: Ozone, water vapor situation
Advantage: Excellent oxidation resistance ozone resistance and erosion resistance
Perfluoroelastomer(FFKM, FFPM)
Temperature Range: -42 to 327 ℃
Hardness:60-95 Shore A
Color: Black / White
Advantage: Long-term, proven performance, can mean less frequent seal changes, repairs and inspections, increasing process and equipment uptime in productivity and yield.
Neoprene Rubber(CR )
Temperature Range:-30 to 125 ℃
Hardness:60-90 Shore A
Color: Black
Use: Oil & Water Resistance Situation Advantage: Excellent oil resistance, performance and stability, widely used, cheaper
This material combination ensures that your breaker remains protected from oil leakage, abrasion, and extreme temperatures, delivering consistent performance in heavy-duty jobs.
Why Choose Our EDT Seal Kits?
- Reliable sealing under extreme pressure and vibration
- Extended hydraulic breaker service life
- OEM-quality replacement at competitive cost
- Reduced risk of oil leakage and equipment downtime
- Proven performance across global job sites
At Kinton Seals, we understand that reliable delivery is just as important as product quality. Our goal is to ensure that every order of Seal Kits for excavators, bulldozers, wheel loaders, and other heavy machinery reaches our customers safely, on time, and in perfect condition.
Packaging & Protection
- Standard Export Packaging – Each seal kit is carefully packed in moisture-proof and dust-proof bags, ensuring seals remain clean and undamaged during storage and transportation.
- Layered Protection – Kits are placed in sturdy cartons, and for bulk shipments, cartons are further reinforced with pallets and stretch film to minimize impact during handling and transit.
- Customization Options – We provide OEM/ODM packaging services, including branded boxes, barcodes, and special instructions, helping partners strengthen their brand presence in local markets.
- Extra Protection – For bulk shipments, cartons and pallets are reinforced to reduce the risk of damage in transit.
Order Processing & Lead Time
- Standard Seal Kits – For large quantity orders, lead time is usually 7–10 working days, as each kit requires precise matching of every seal, followed by labeling and packaging.
- Custom Seal Kits – For tailored requirements or non-standard models, production and assembly typically take 15–30 days, especially if new tooling or mold development is required.
- Sample Orders – Small batch or sample kits can often be prepared faster, subject to stock availability.
Delivery Options
- Air Freight for urgent orders
- Sea Freight for bulk shipments
- Courier Express (DHL, FedEx, UPS) for small packages and samples
